TB135
TOPBRIGHT
| Quantity: | |
|---|---|

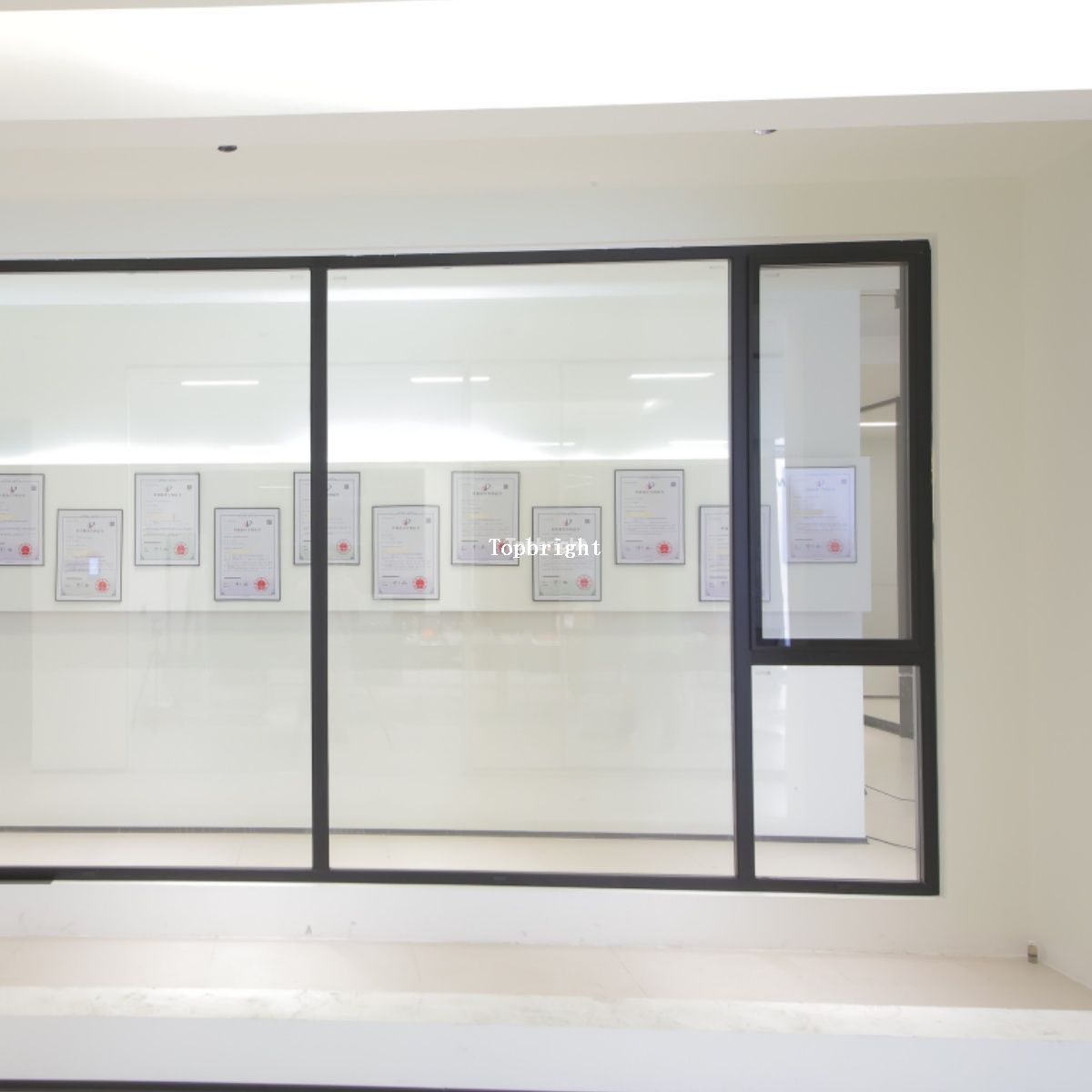

Why Choose TB135 Slim-Frame Thermal Break Casement Window ?
1. Ultra-Slim 135mm (5.3") Visible Frame Profile
Minimalist Aesthetic: The ultra-narrow frame maximizes glass area, offering unobstructed views and a sleek, modern appearance.
2. Large Opening Size: 36" (W) × 72" (H) Max.
Optimal Ventilation: The generous sash dimensions (914mm × 1828mm) allow for excellent airflow while maintaining structural stability.
3. Aluminum Profile Thickness: 2.0mm
High-Strength Material: 2.0mm-thick 6063-T5 aluminum provides superior load-bearing capacity and resistance to deformation.
4. Multi-Point Locking System
Enhanced Security: 3-5 locking points per sash, making forced entry extremely difficult.
Weatherproofing: Compresses sealing gaskets for superior air and water tightness.
5. Integrated Mesh Screen (High-Transparency)
Insect Protection: 18-20 mesh count blocks mosquitoes and debris while allowing airflow.
Retractable Design: Hidden cassette system maintains a clean appearance when not in use.
Easy Maintenance: Removable for cleaning; available in fiberglass or stainless steel (304 grade for corrosion resistance).
6. Designed for Modern Residential & Commercial Applications
Residential Use: Ideal for luxury homes, apartments, and passive house designs.
Commercial Use: Suitable for offices, hotels, and retail spaces requiring high-performance glazing.
Compliance: Meets international standards for thermal, acoustic, and structural performance (EN, ASTM, GB).
