SED200
TOPBRIGHT
| Quantity: | |
|---|---|
1.Minimal Sightline for a Modern Aesthetic：Profile is slim and contemporary with 21mm, up to 96% glass visual area. Max panel size: H 70 7/8" - 137 3/4" x W31 3/8" - 157 3/8"（H1800-3500 x W800-4000mm）
2. Multi-channel sealing design: EPDM rubber strips overlap each other, sealing layer by layer.
3. Embedded frame design: Maximize the impact of the frame on the overall elevation of the product to achieve the effect of panoramic view.
4. Recessed frame-wrapped sash design:The frame and sashes are flush with each other for better airtightness and stability, and a wider field of view.
Flush sills design: Flush sills create a very barefoot-friendly transition.
5.Three options of drainage system：

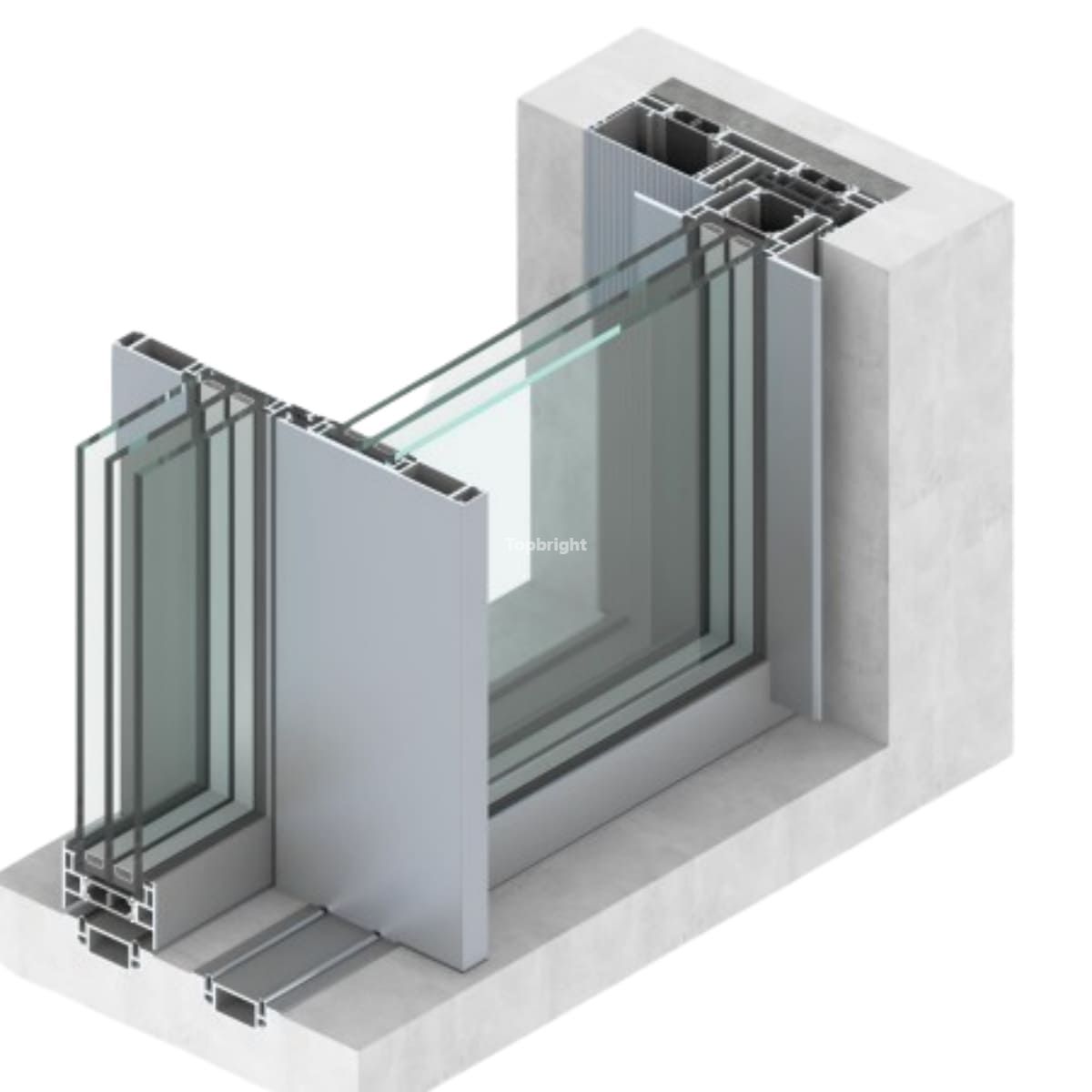

Trackless push-pull solution: barrier-free access and easy to clean. Suitable for indoor scenarios without watertight requirements.
Stepped drainage: prevents rainwater back-up and reduces water damage deposits. Suitable for outdoor scenarios where watertightness is not critical.
Highly watertight drainage: hidden stepped drainage system (external catch basin) Barrier-free access, leak-proof. Suitable for coastal areas with high watertightness requirements.

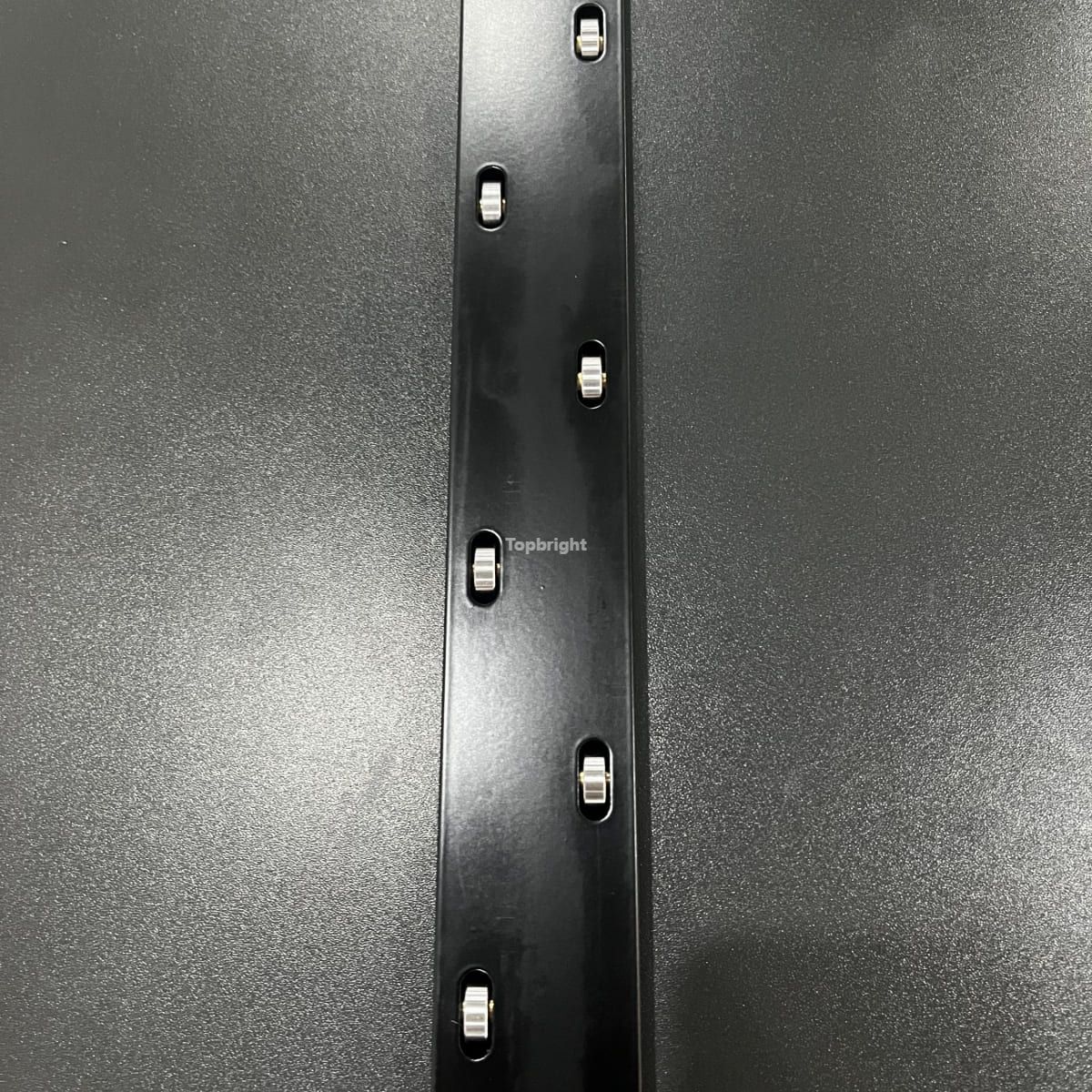

Stainless Steel Heavy-Duty Roller with 4 Sets of Double-Row 8-Wheel Configuration: Maximum Load Capacity up to 800KG.
6.Multi-point locking system: When locking, multiple locking points in different positions are firmly snapped into the locking base, which together generate strong closing pressure to maximize the elastic deformation of the sealing strip and achieve seamless sealing.
7.SED200 optional design:
8.Motorized options：
Motorized sashes are installed indoors only
Imported DC brushless 145W motor: with electric lock function
Turbine-worm drive structure: motor runs quietly, improving driving torque and transmission efficiency.
Infinitely variable speed drive: the door runs smoothly at a uniform speed and reduces running noise.
