SED200 PROMAX Slim Frame Four-Track Sliding Door

The narrow frame four-track sliding door design offers wide views and ample natural light, featuring a concealed frame for enhanced aesthetics and security. The four-track system ensures stability and smooth operation, making it suitable for residential and commercial spaces, flexibly meeting dividing and opening needs.

Material: Aluminum frame+hardware+glass
Applications: Office Buildings, Retail Spaces, Healthcare Facilities, Hotels And Tourist Places

For customization please contact our team!
  • SED200

  • TOPBRIGHT

Availability:
Quantity:

Why Choose SED200 PROMAX Slim Frame Four-Track Sliding Door?


1. Wide View

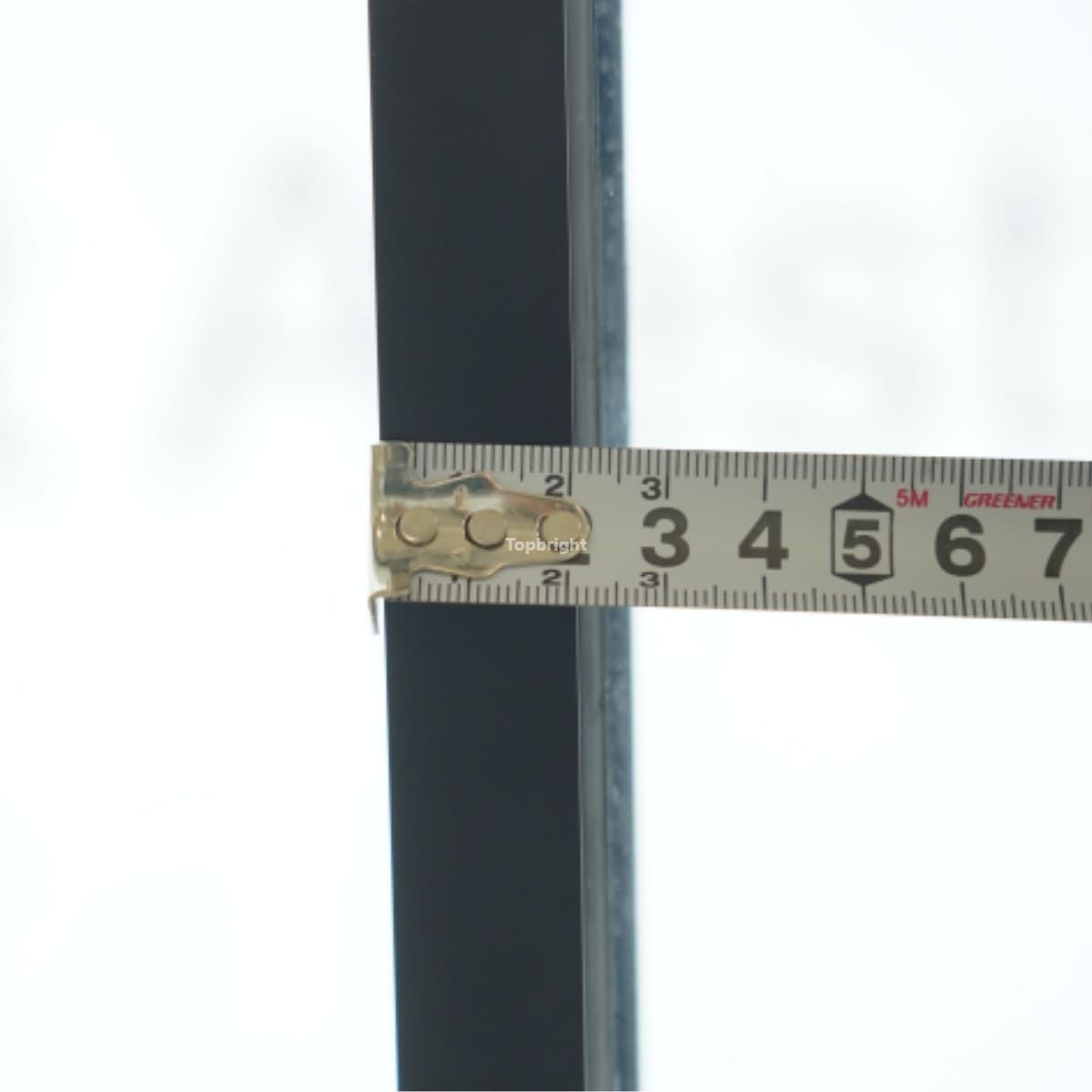

The 2CM visible surface design minimizes the width of the door frame, maximizing the glass area. This allows for abundant natural light to enter the interior, enhancing the brightness of the space. It also provides an unobstructed view of the outdoor landscape, making it ideal for homes near gardens, balconies, or scenic areas, thereby improving the overall living experience.


SED200_Slim_Frame_Four-Track_Sliding_Door_TOPBRIGHT (6)


2. Framed Roller Design

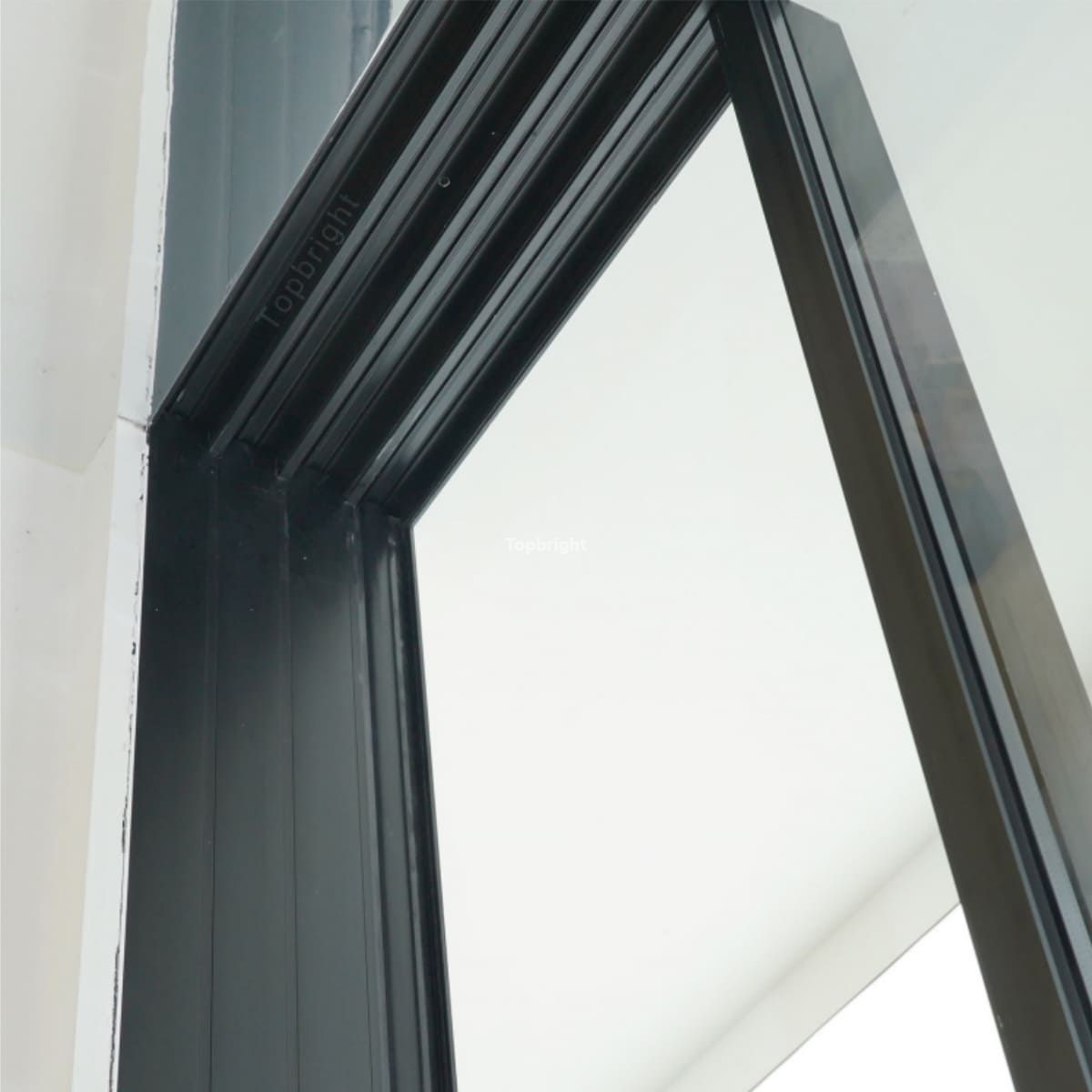

The framed roller design in narrow frame four-track sliding doors ensures enhanced stability and durability, allowing for smooth operation. It provides better weight distribution, reduces wear on tracks, and offers improved security, making it ideal for high-traffic areas while maintaining aesthetic appeal.


SED200_Slim_Frame_Four-Track_Sliding_Door_TOPBRIGHT (3)


3. Strong Stability

The four-track design provides greater stability and load-bearing capacity compared to traditional two or three-track sliding doors. Multiple tracks distribute the weight of the door, ensuring smoother operation without wobbling or tilting during use. This is particularly beneficial for larger or heavier doors, ensuring safety and reliability over long-term use.


SED200_Slim_Frame_Four-Track_Sliding_Door_TOPBRIGHT (4)


4. Smooth Operation

The frame-mounted wheel structure plays a crucial role in the opening and closing of the sliding door. It enhances the door's load-bearing capability while reducing wear and tear, ensuring that the door slides smoothly even with frequent use. Users can easily open or close the door with a gentle push, significantly enhancing the user experience.


SED200_Slim_Frame_Four-Track_Sliding_Door_TOPBRIGHT (11)     SED200_Slim_Frame_Four-Track_Sliding_Door_TOPBRIGHT (7)


5. Versatile Functionality

Four-track sliding doors are suitable for various settings, including residential homes, offices, and commercial spaces. Their flexibility allows them to serve as both space dividers and open up to create larger, more open areas when needed. For instance, in a home, they can connect the living room to the balcony; in an office, they can flexibly separate meeting rooms from common areas, catering to diverse usage requirements.


                                                                                 SED200 DETAIL
Roller SystemPanel-Mounted Sliding Door Roller
Hook Up Options36mm / 20mm
Handle Options

No Handle / One Side / Both Side

Closure Options

Yes

Hidden FrameYes
Hidden TrackNo
Maximum Door Panel Height5.5m
Maximum Door Panel Width

3m

Maximum Door Panel Weight

600kg
Maximum Area Of The Movable Panel11
Maximum Area Of The Fixed Panel16

Electric Opening

Yes
Smart LocksYes
Welcome LightYes
Glass Thickness

36mm



                                                                             SED200 ProMax DETAIL
Roller System

Frame-Mounted Sliding Door Roller

Hook Up Options20mm
Handle Options

One Side / Both Side

Closure Options

Yes

Hidden FrameYes
Hidden Track

Yes

Maximum Door Panel Height

6.5m

Maximum Door Panel Width

4m

Maximum Door Panel Weight

1.2T
Maximum Area Of The Movable Panel18
Maximum Area Of The Fixed Panel23

Electric Opening

Yes
Smart LocksYes
Welcome LightYes
Glass Thickness

36mm



                                              SED200 Slimline Lift Sliding Door DETAIL
Roller System

Panel-Mounted Sliding Door Roller

Hook Up Options20mm
Handle Options

No

Closure Options

No

Hidden FrameYes
Hidden Track

No

Maximum Door Panel Height

6.5m

Maximum Door Panel Width

4m

Maximum Door Panel Weight

600kg
Maximum Area Of The Movable Panel8
Maximum Area Of The Fixed Panel18

Electric Opening

No
Smart LocksNo
Welcome LightYes
Glass Thickness

36mm

1. Residential Spaces

Living Rooms: Used as a stylish transition between the living room and outdoor areas like patios or gardens, enhancing natural light and the view.

Balconies: Ideal for connecting indoor spaces with balconies, allowing for seamless indoor-outdoor living.

Room Dividers: Can be employed to separate larger rooms, such as dining areas from living spaces, while still offering the option to open up the space when desired.


2. Commercial Spaces

Offices: Four-track sliding doors can create flexible meeting rooms or collaborative spaces, allowing for quick reconfiguration of office layouts.

Retail Stores: Used as entrance doors that provide a welcoming and open feel while maximizing visibility of products from outside.

Restaurants and Cafés: Ideal for connecting indoor dining areas with outdoor seating, creating a vibrant atmosphere.


3. Hospitality

Hotels: Used in suites to provide guests with direct access to private patios or balconies, enhancing the luxury experience.

Resorts: Commonly found in beachfront properties, allowing guests to enjoy unobstructed views and easy access to outdoor areas.


4. Public Buildings

Exhibition Halls: Used to create flexible spaces that can be adapted for different events, allowing for easy flow of people.

Community Centers: Can divide large communal areas into smaller, functional spaces for classes, meetings, or activities.


5. Outdoor Structures

Sunrooms: Perfect for enclosing outdoor living spaces while maintaining a connection with nature.

Garden Rooms: Used to create a functional space in gardens that can be opened up during pleasant weather.


SED200_Slim_Frame_Four-Track_Sliding_Door_TOPBRIGHT (2)    SED200_Slim_Frame_Four-Track_Sliding_Door_TOPBRIGHT (1)
