SED200 PROMAX 90-Degree Corner Sliding Door

The SED200 PROMAX 90-Degree Corner Sliding Door features a framed roller system and a 20mm visible face, providing a sleek, modern aesthetic. Its concealed track design ensures a clean look while facilitating smooth operation and enhancing safety. This door maximizes natural light and offers unobstructed views, making it ideal for contemporary spaces. With its durable construction, the SED200 PROMAX combines functionality with style, perfect for both residential and commercial applications.

Material: Aluminum frame+hardware+glass
Applications: Office Buildings, Retail Spaces, Healthcare Facilities, Hotels And Tourist Places

For customization please contact our team!
  • SED200

  • TOPBRIGHT

Availability:
Quantity:

Why Choose SED200 PROMAX 90-Degree Corner Sliding Door?


1. 20mm visible frame: A sliding door with a 20mm visible frame offers a wider view and increased natural light, enhancing the sense of space. The thinner frame reduces visual obstruction, creating a more open environment, making it ideal for modern homes and commercial spaces.


20mm_visible_frame__TOPBRIGHT



2. Concealed Track: The concealed track design of sliding doors offers a cleaner look, minimizing external debris interference and ensuring smooth operation. This system enhances safety by preventing accidents while maximizing space utilization, making it ideal for modern homes and commercial settings.

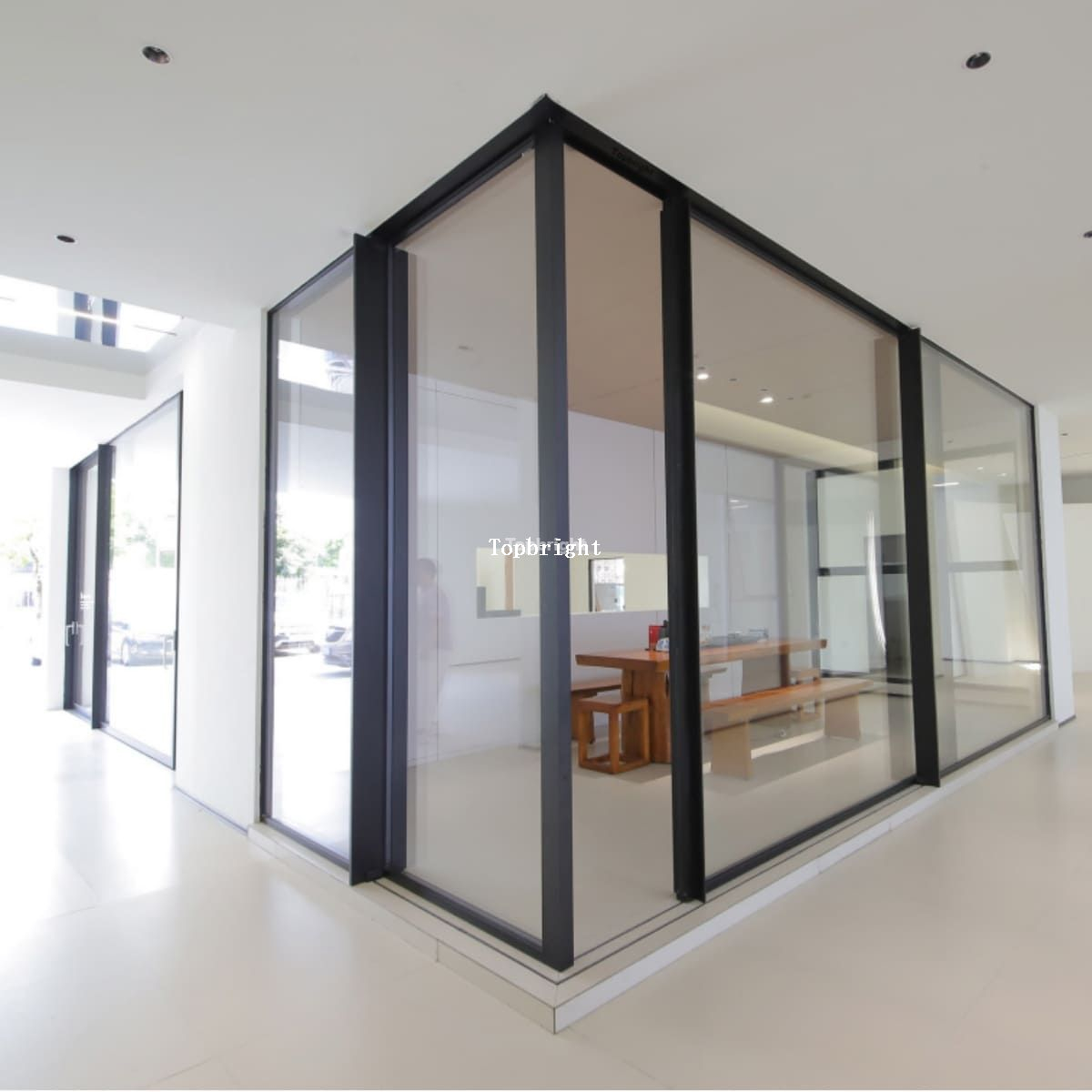

SED200_PROMAX_90-Degree_Corner_Sliding_Door__TOPBRIGHT


3. Frame-mounted rollers: It offer excellent stability and durability, making them suitable for heavy loads while reducing wear. Their design allows for easy installation and replacement, ensuring smooth sliding performance. They are widely used in sliding doors and windows, enhancing the overall user experience.


concealed_track__TOPBRIGHT



4. Solid Cnc Precision-Machined Anti-Sway Wheels: Highly impact-resistant, the rear-mounted design prevents the door panel from lifting or derailing, with no adjustment space required. It achieves an excellent effect with minimal sway gap, ensuring stability. Even after experiencing a typhoon, the system maintains its original performance.


Solid_Cnc_Precision-Machined_Anti-Sway_Wheels_TOPBRIGHT


5. Locking System: The standard configuration includes a protruding flat lock for security and ease of use. Users can also opt for a concealed version of the flat lock, enhancing aesthetics and catering to minimalist design preferences.


concealed_flat_latch__TOPBRIGHT     concealed flat latch__TOPBRIGHT(2)


                                                                                 SED200 DETAIL
Roller SystemPanel-Mounted Sliding Door Roller
Hook Up Options36mm / 20mm
Handle Options

No Handle / One Side / Both Side

Closure Options

Yes

Hidden FrameYes
Hidden TrackNo
Maximum Door Panel Height5.5m
Maximum Door Panel Width

3m

Maximum Door Panel Weight

600kg
Maximum Area Of The Movable Panel11
Maximum Area Of The Fixed Panel16

Electric Opening

Yes
Smart LocksYes
Welcome LightYes
Glass Thickness

36mm



                                                                             SED200 ProMax DETAIL
Roller System

Frame-Mounted Sliding Door Roller

Hook Up Options20mm
Handle Options

One Side / Both Side

Closure Options

Yes

Hidden FrameYes
Hidden Track

Yes

Maximum Door Panel Height

6.5m

Maximum Door Panel Width

4m

Maximum Door Panel Weight

1.2T
Maximum Area Of The Movable Panel18
Maximum Area Of The Fixed Panel23

Electric Opening

Yes
Smart LocksYes
Welcome LightYes
Glass Thickness

36mm



                                              SED200 Slimline Lift Sliding Door DETAIL
Roller System

Panel-Mounted Sliding Door Roller

Hook Up Options20mm
Handle Options

No

Closure Options

No

Hidden FrameYes
Hidden Track

No

Maximum Door Panel Height

6.5m

Maximum Door Panel Width

4m

Maximum Door Panel Weight

600kg
Maximum Area Of The Movable Panel8
Maximum Area Of The Fixed Panel18

Electric Opening

No
Smart LocksNo
Welcome LightYes
Glass Thickness

36mm

1. Living Room to Balcony Divider: A 90-degree corner sliding door is perfect for separating a living room from a balcony, providing sound insulation and thermal efficiency while maximizing the view.


2. Kitchen to Dining Area Separator: In open-concept kitchens, this type of door can isolate cooking odors while maintaining an open feel when not in use.


3. Office to Conference Room: These doors are also popular in commercial spaces, effectively partitioning offices from conference rooms, maintaining privacy while adding a modern touch.


4. Bathroom or Closet Divider: In residential settings, these doors can serve as stylish dividers for bathrooms or closets, combining a concealed track with a slim frame to save space and enhance aesthetics.
