Standard 5’’ Depth Aluminum Visable Frame Window Wall TB127


The TB127 Series Visable Frame window wall's design emphasizes the lines and contours, adding a unique aesthetic to the building. It utilizes advanced thermal insulation technology to effectively isolate indoor and outdoor temperature conduction, providing superior thermal insulation and saving energy. At the same time, the window wall possesses excellent airtightness, effectively blocking the infiltration of cold air, hot air and dust, keeping the indoor environment comfortable and clean. Easy and quick installation, suitable for all kinds of building projects

Material: Aluminum frame+glass
Applications: Residential, Commercial Buildings, Medical buildings, Educational buildings

For customization please contact our team!

  • TB127 window wall

  • TOPBRIGHT

Availability:
Quantity:



1. Diversity

TOPBRIGHT window wall is an economical solution that does not compromise performance and achieves the true appearance of the curtain wall. Columns are available in four sizes for low-rise to high-rise applications,including standard 4’’, 5’’, 6’’, 7.3’’ depth system. According to different floors, you can choose the most suitable floor window wall size, get a consistent appearance at the same time, more effective cost reduction.

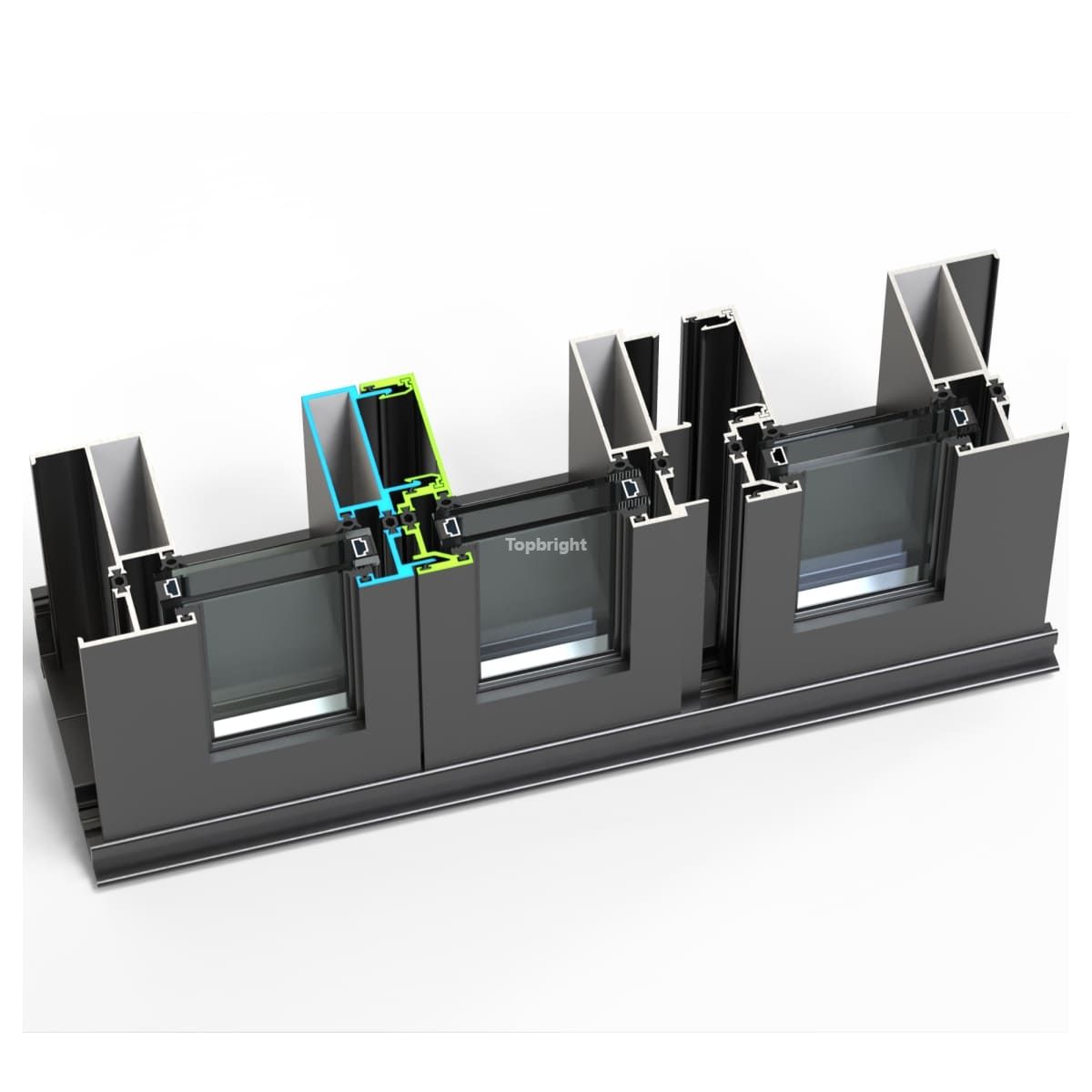

TB152 window wall (5)


2. Economy

TB127 window wall offers the choice of stock length or factory fabrication and can be shipped knocked down. In addition, the system can be preassembled and pre-glazed under controlled shop conditions that save time compared to field construction. system plate units are installed from the interior of the building to minimize weather delays and reduce the need for scaffolds and lift equipment the same time, more effective cost reduction.

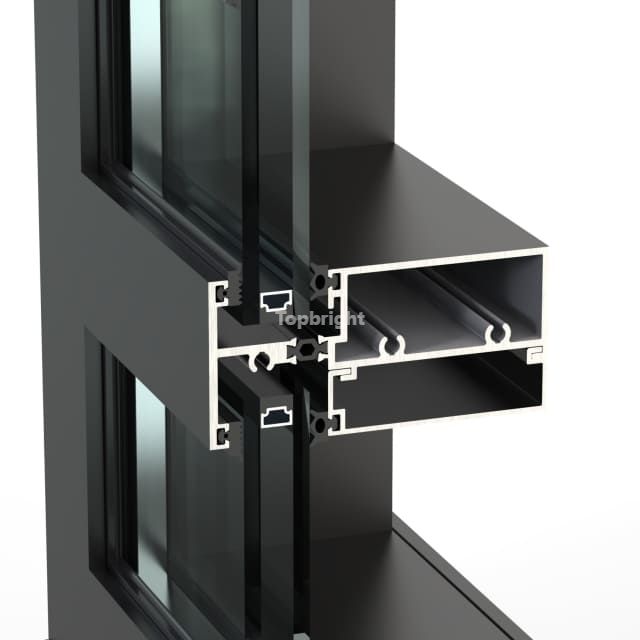

TB152 window wall (4)TB152 window wall (8)






Material:

Aluminum thickness: 2.5-4.0mm


Standard Glass Configuration:

6mm+12A+6mm LowE


Please contact our team for other glass options!


Window Wall Size Specification:


Standard:

Width:900-1500mm

Height:2800-3000mm


Extra large:

Width:2000mm

Height:3500mm

Sizes can be customized, contact our team for details!




TOPBRIGHT window walls are suitable for a variety of building types including but not limited to:



1.Commercial buildings: office buildings, shopping centers, hotels, malls, etc.



2.Residential buildings: high-grade houses, apartments, villas, etc.



3.Cultural buildings: museums, theaters, exhibition centers, etc.



4.Educational buildings: schools, universities, libraries, etc.



5.Medical buildings: hospitals, clinics, medical facilities, etc.



6.Entertainment buildings: gymnasiums, entertainment venues, conference centers, etc.



7.Industrial buildings: factories, warehouses, R&D centers, etc.
