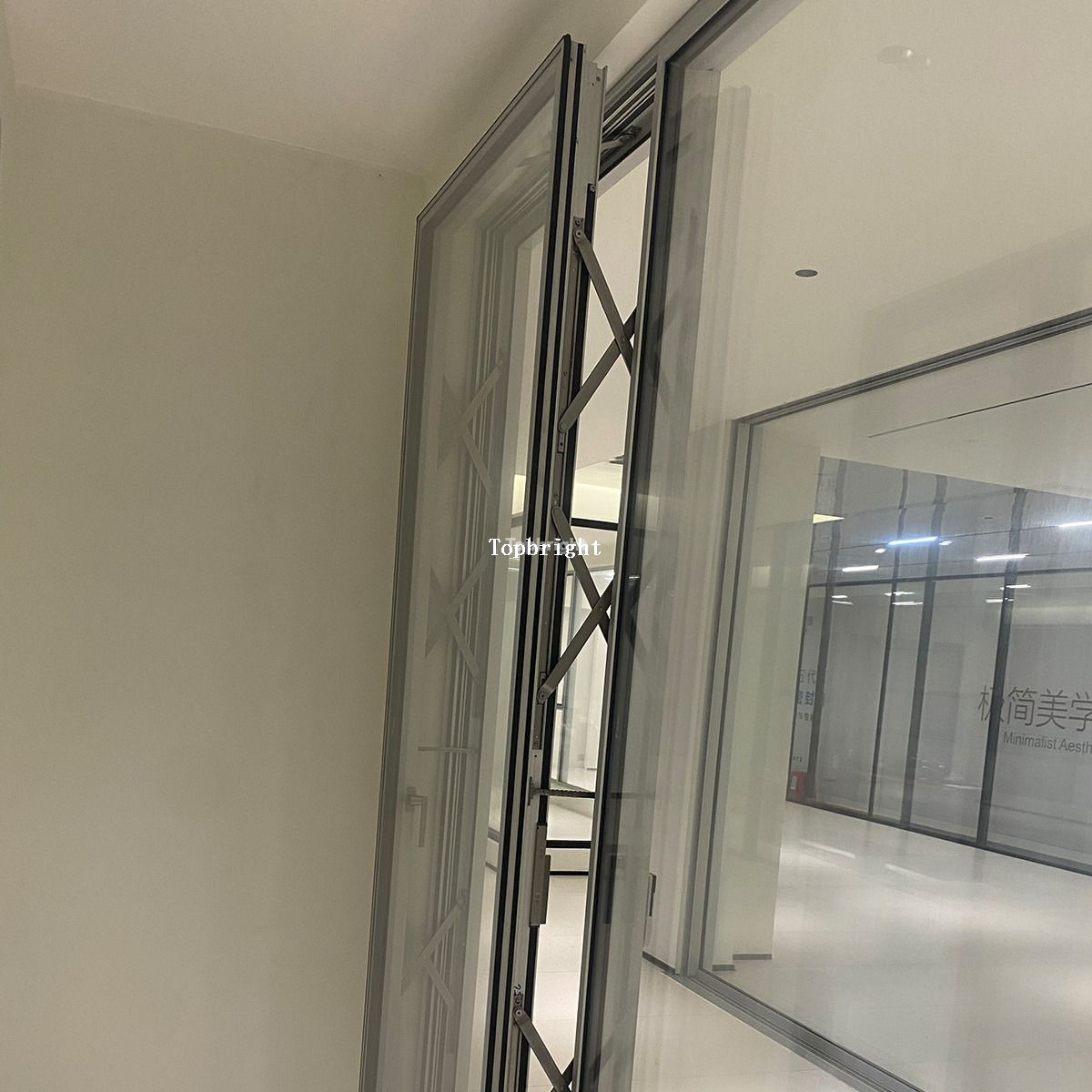

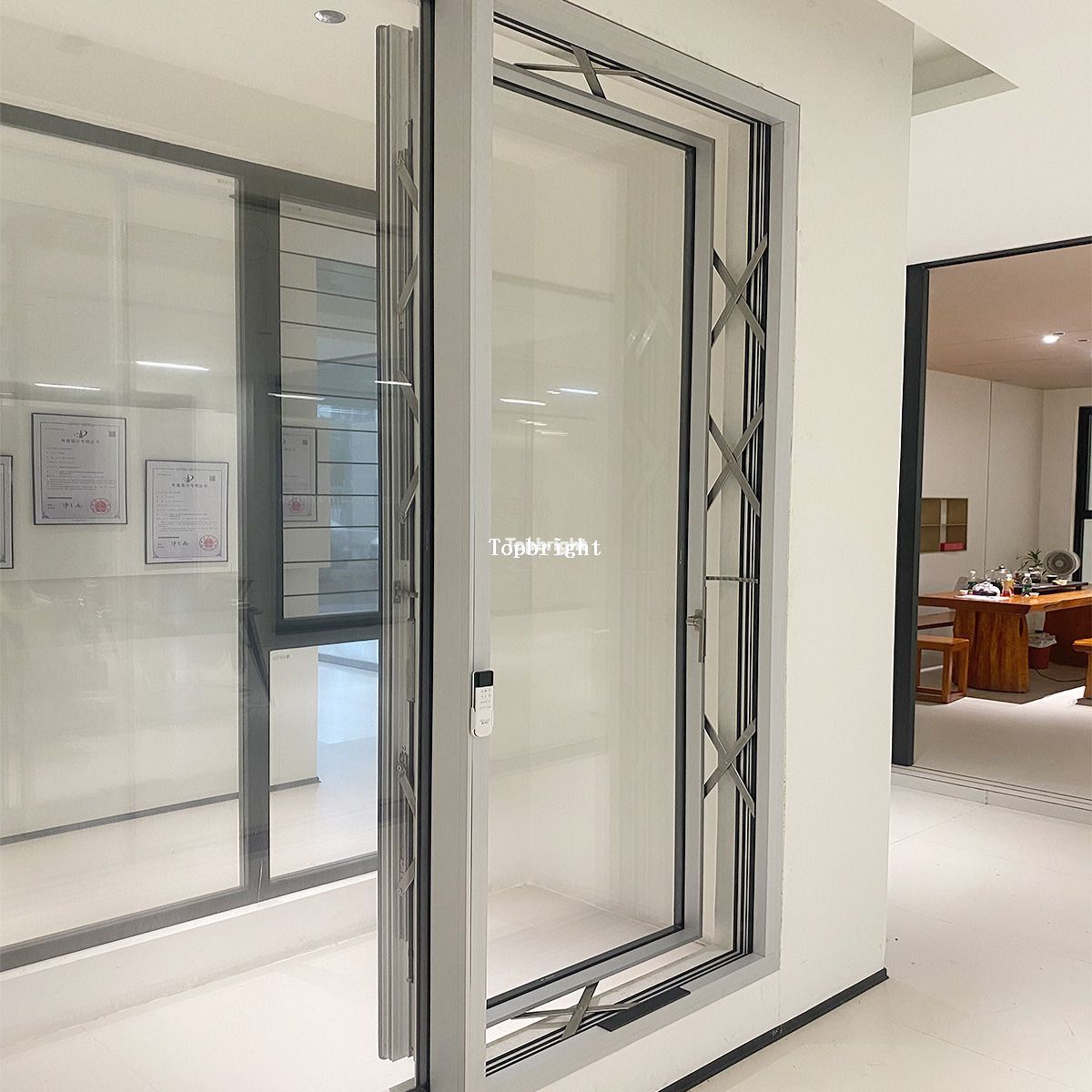

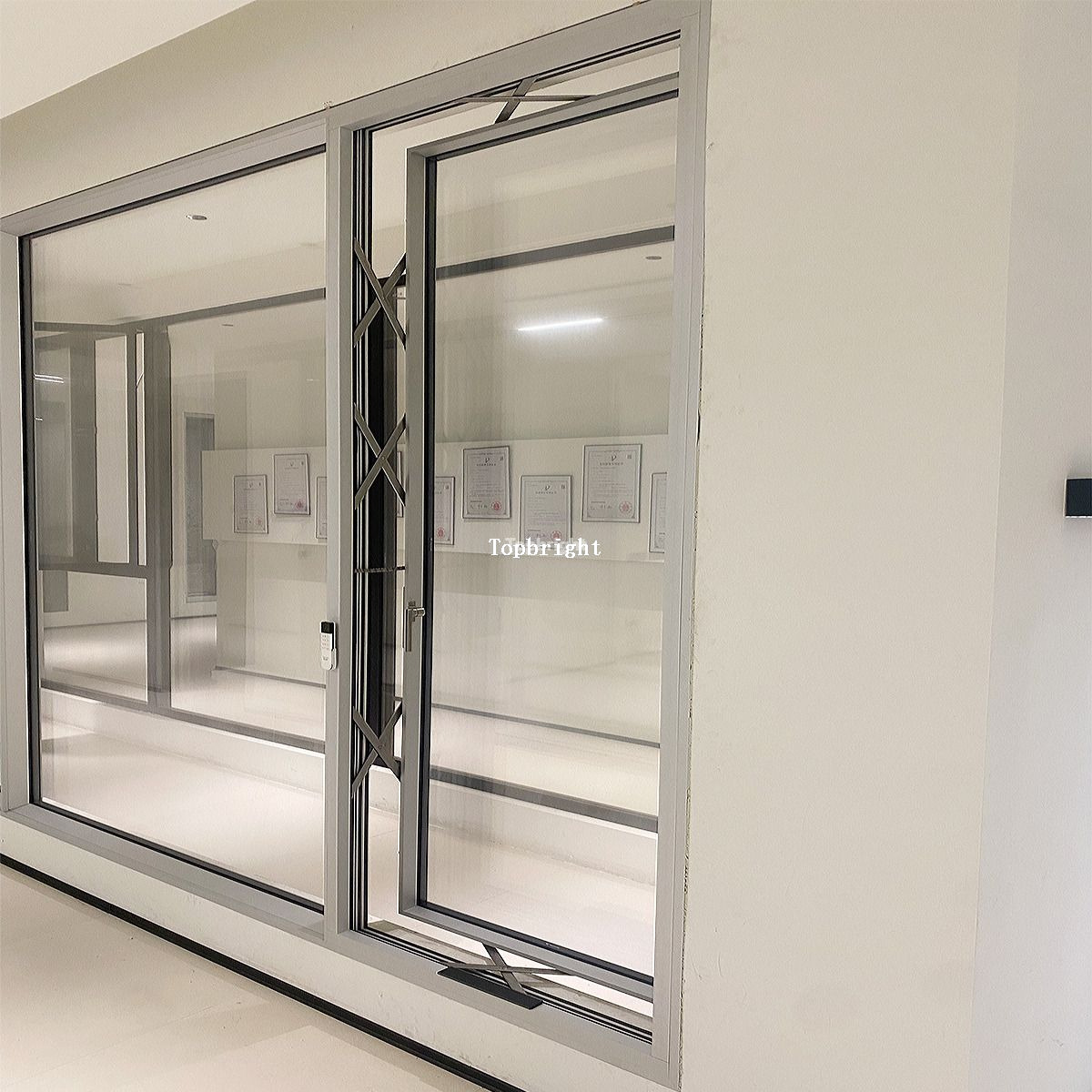

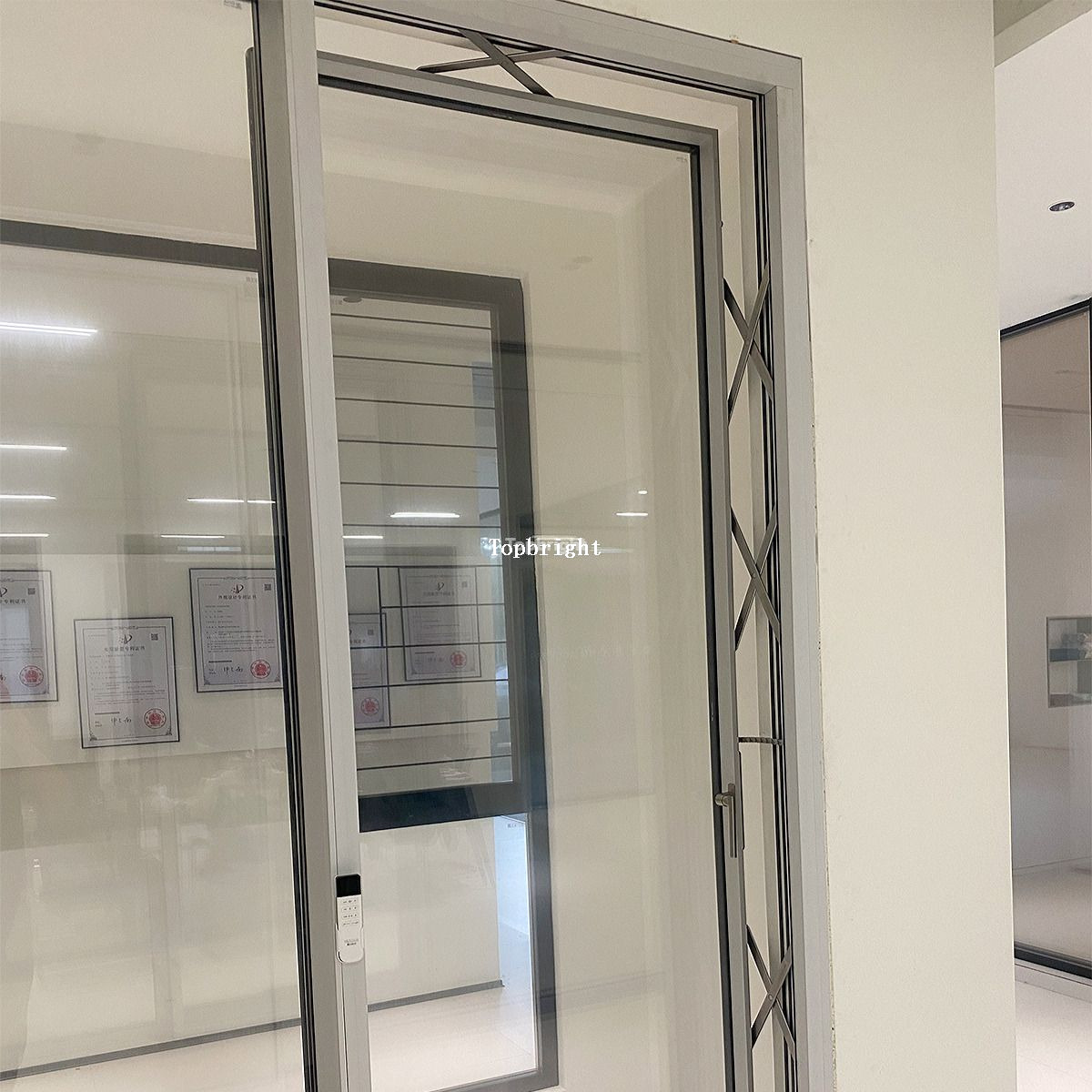

Solar-Powered Electric Casement Window
TOPBRIGHT
| Quantity: | |
|---|---|
Why Choose Solar-Powered Electric Casement Window?
1. Structure & Materials
Aluminum Profile: Constructed with 6063-T6 high-strength aluminum alloy, offering excellent durability, corrosion resistance, and surface finish quality.
Thermal Break Strip: Equipped with a 20mm PA66GF25 fiberglass-reinforced nylon thermal barrier, enabling efficient insulation through a broken bridge structure.
Glass System: Triple-glazed configuration of 5G + 25A + 5G tempered glass ensures outstanding thermal insulation and soundproofing performance.
2. Thermal & Acoustic Performance
Whole Window Thermal Transmittance (Uw): ≤ 1.7 W/m²·K, compliant with green building energy efficiency standards.
Frame Thermal Transmittance (Uf): ≤ 1.9 W/m²·K, enhancing overall insulation performance.
Sound Insulation (Rw - To Rm): ≥ 42 dB, effectively reduces external noise and creates a quieter indoor environment.
3. Air Tightness, Water Tightness & Wind Resistance
Water Tightness (△P): Rated at 720 Pa, effectively prevents water penetration.
Wind Load Resistance (P3): Reaches up to 4.5 kPa, suitable for high-rise and wind-prone environments.
Air Tightness: Meets national standards to ensure energy efficiency and airtight performance.
4. Sash Specifications
Maximum Sash Height: 1.8 m
Maximum Sash Width: 2.4 m
Maximum Sash Load Capacity: 80 kg
5. Smart & Safety Features
Solar Power System: Eco-friendly energy supply eliminates wiring complexity and simplifies installation.

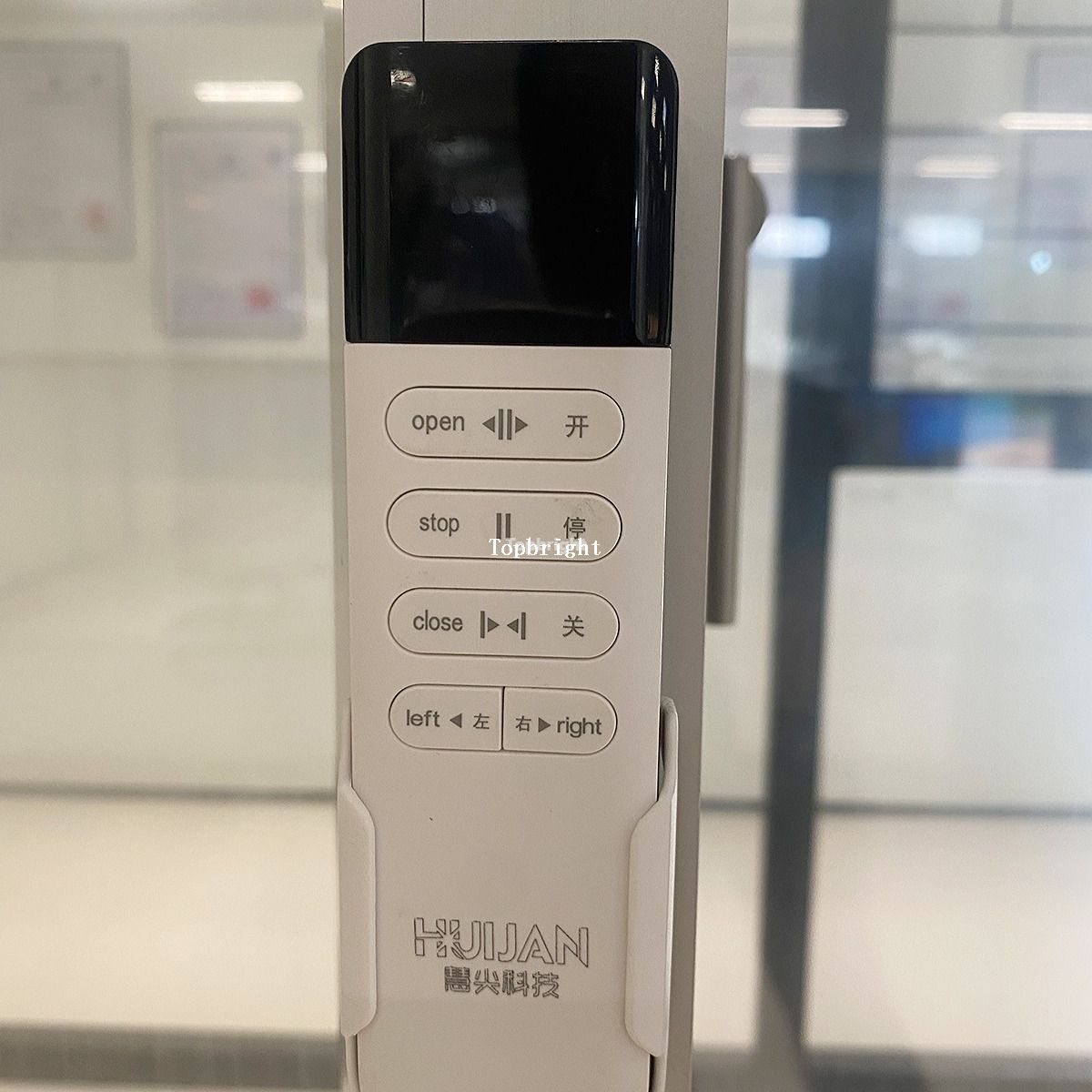

Remote Control: Enables convenient remote opening and closing of the window.

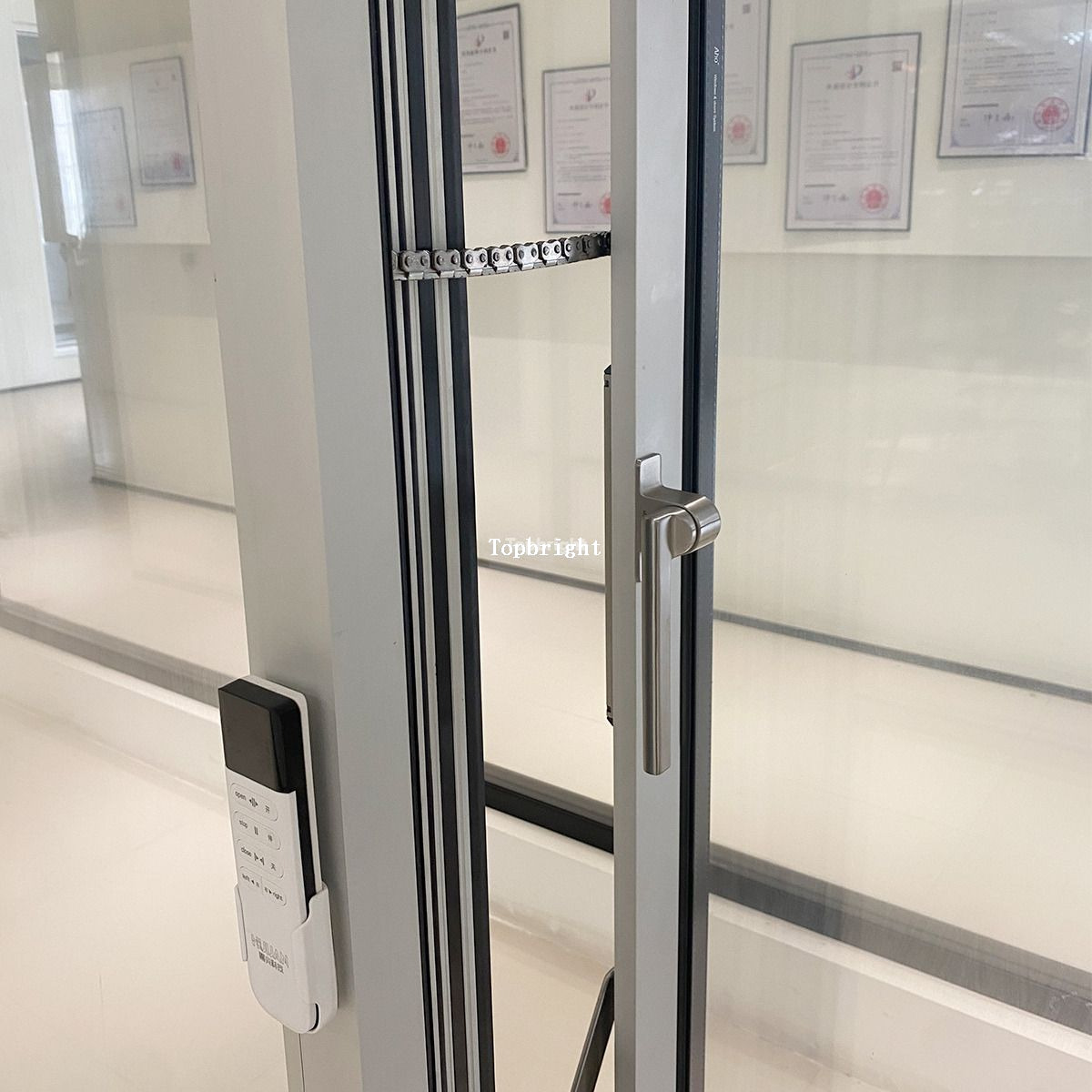

Anti-Fall Safety Rope: Provides enhanced safety for high-altitude applications, ideal for residences, schools, and healthcare facilities.
