TP700 ON-FLOOR ALL GLASS U-CHANNEL RAILING SYSTEM

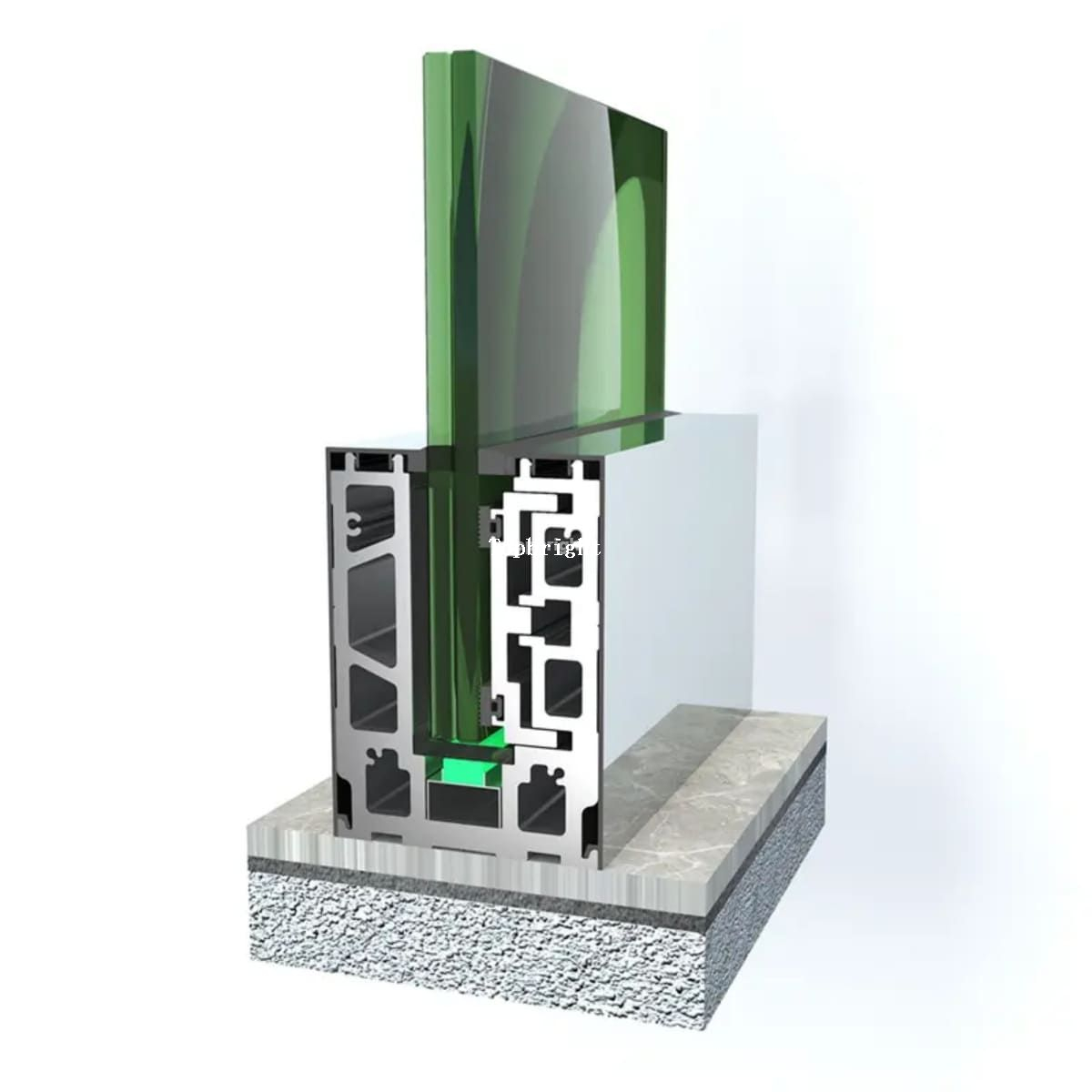

The TP700 U channel glass railing is designed with a base cross section of 88mm in width and 122mm in height, making it suitable for flat or staircase installations, and is also available in a curved shape. Manufactured from high quality aluminum alloy 6063-T5 with powder coated and anodized finish. The top and bottom of the glass can be fitted with LED strips and is suitable for installation on concrete floors, wooden floors and steel frames. Heavy duty mechanical property design makes this system can be used in project of high wind load area, like beach side hotel and high-rise building.

Material：Aluminum alloy 6063-T5 with powder coating and Anodizing
Cap rail：Recommend
LED strip: LED lighting strip can be installed on both the bottom and the top of glass.
Covers:Aluminum/Stainless steel, Cover coating and color can be customized.


  • TP700 ON-FLOOR ALL GLASS U-CHANNEL RAILING SYSTEM

  • TOPBRIGHT

Availability:
Quantity:
Inquire



BASE PROFILE:




TP700_ALL_GLASS_RAILING_TOPBRIGHT (2)     TP700_ALL_GLASS_RAILING_TOPBRIGHT (3)TP700_ALL_GLASS_RAILING_TOPBRIGHT (4)TP700_ALL_GLASS_RAILING_TOPBRIGHT (5)TP700_ALL_GLASS_RAILING_TOPBRIGHT (6)





Led Strip Avalible
Installation On-Floor
Color

1.JET BLACK

2.BRUSHED CHAMPAGNE

3.PORCELAIN ENAMEL PLATINUM
Galss Option

1.Single Glass: 12mm/15mm/19mm

2.Tempered Laminated Glass:  6+6/8+8/10+10


LED STRIP:

Our specially designed LED channel and holder profile seamlessly accommodate LED strip lights of any specification, allowing you to enjoy the vibrant and joyful glow of colorful LED lights during the nighttime. Experience the brightness and enchantment of our all-inclusive solution.


Block&Outer Decorative Cover Sheet:

Leveraging an external decorative cover sheet, the TP700 system offers versatility as a 20CM and 30CM block. The outer cover sheet can be made of stainless steel or aluminum. By incorporating a linear LED holder profile that passes through the blocks, the glass remains perfectly straight. This ingenious design prevents installation errors and ensures a secure fit for the LED strip light beneath the glass. The LED light illuminates the glass surface, providing ample luminance. Enjoy the benefits of this innovative solution for enhanced aesthetics and hassle-free installation.


Aluminum profile and stainless-steel sheet are cover plate options. Standard color for aluminum profile is mysterious silver. Customized colors are available with powder coating, PVDF, anodizing, and electrophoretic coating. Stainless-steel cover comes in mirror and brushed finishes. For indoor applications in mild climates, PVD technique offers customizable colors to align with your house decoration style. Create a perfect match with our versatile cover plate options.(PVD color is only suitable for indoor application)


Curve:

TP700_ALL_GLASS_RAILING_TOPBRIGHT (1)



Stairway Application:


TP100_ALL_GLASS_U_CHANNEL_RAILING_STAIR_INSTALLATION


Our engineer team designed the SA10 symmetric adaptor to facilitate staircase installation of the All Glass railing system. With its adjustable feature, the SA10 enables the TP100 system to be installed on almost any staircase. After installation, a decorative cover plate, available in stainless steel sheet or matching marble slab, is used to seal the installation position.


Available Accessories:


Cap Rail:

1.Square Groove Cap Rail Tube

2.Round Groove Cap Rail Tube

3. Mini Square Groove Cap Rail Tube

4. Mini Round Groove Cap Rail Tube

5. Groove


Accessories:

1. Straight Connector

2. Corner Connector

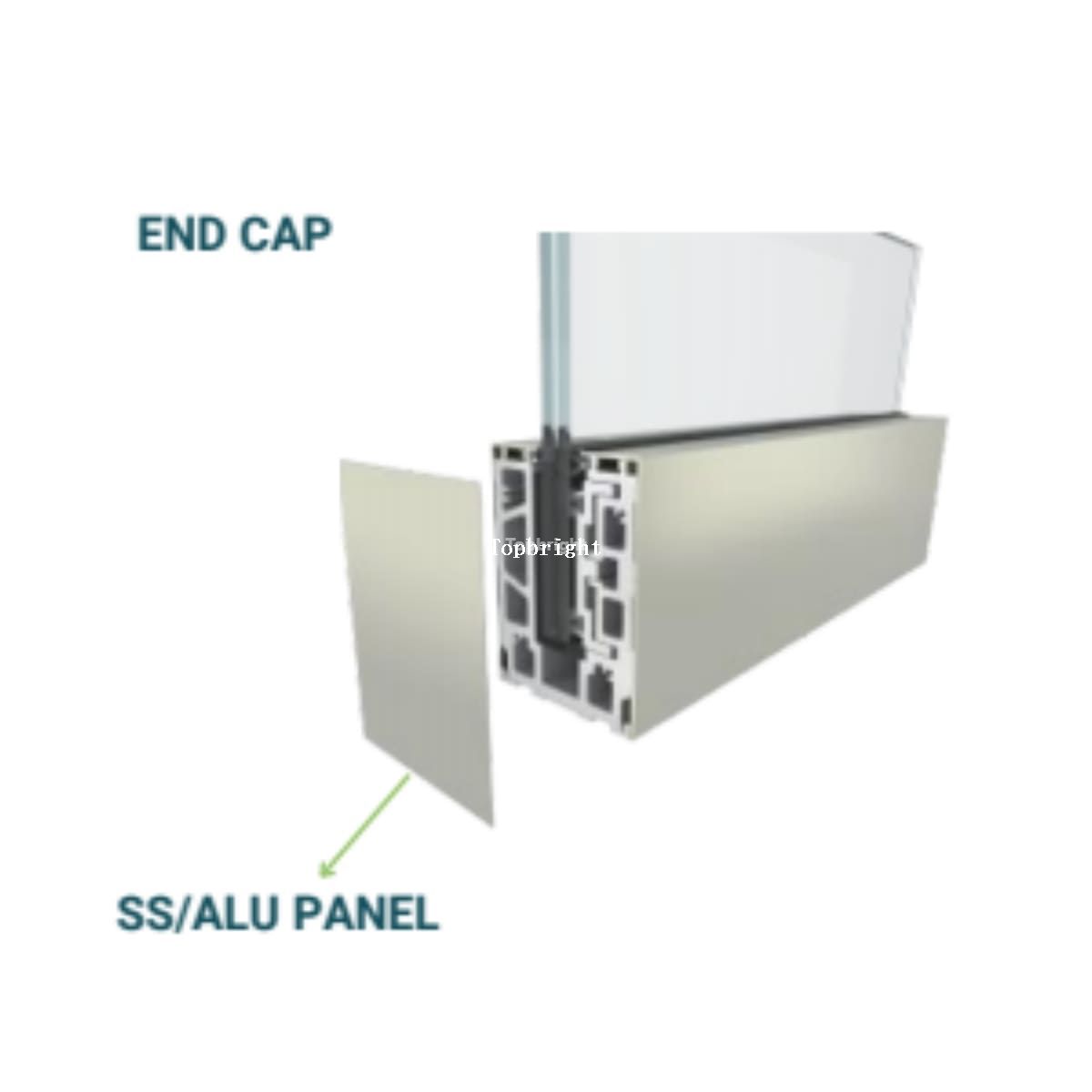

3. End Cap

4. Flange







Standard height of glass: 1M

Width: 1M-1.2M

Please contact our team for other options!



TEMPERED LAMINATED GLASS


6+6:


6+0.76PVB+66+0.76SGP+6
6+1.14PVB+66+0.89SGP+6
6+1.52PVB+66+1.52SGP+6



8+8:


8+0.76PVB+88+0.76SGP+8
8+1.14PVB+88+0.89SGP+8
8+1.52PVB+88+1.52SGP+8



10+10:


10+1.14PVB+1010+0.89SGP+10
10+1.52PVB+1010+1.52SGP+10



12+12:


12+1.14PVB+1212+0.89SGP+12
12+1.52PVB+1212+1.52SGP+12


CURVE:

6+2.28VB+6

8+2.28PVB+8

10+2.28PVB+10




Whether it is a concrete, steel, glass curtain wall or traditional wooden house, u channel glass railing can add beauty and modernity to it.


Interior stairs and handrails: u-channel glass railings can be used for interior stairs, stair railings and stair edge railings. they provide safety and security for stairs while adding brightness and visual interest to the space.


Outdoor balconies and terraces: u-channel glass railings are ideal for creating a safe separation on outdoor balconies and terraces. they provide unobstructed views while protecting against the risk of falls.


Pool fences: u-channel glass railing are a common choice for pool fences. they provide a safe barrier that prevents people from accidentally entering the pool area without obstructing the view of the pool.


Restaurant and patio fencing: many restaurants and patios choose to use u-channel glass fencing as a railing to provide security and visual appeal. they can provide boundaries in outdoor dining areas without blocking guests from enjoying the surrounding views.


Commercial and office buildings: u-channel glass railings are also very common in commercial and office buildings. they can be used in staircases, hallways, catwalks, and other areas to provide security and a modern look.


Hotels and resorts: many hotels and resorts choose to use u-channel glass fencing to create a luxurious and modern look. they can be used on balconies, terraces, pool areas, and other places to provide security and aesthetics.
