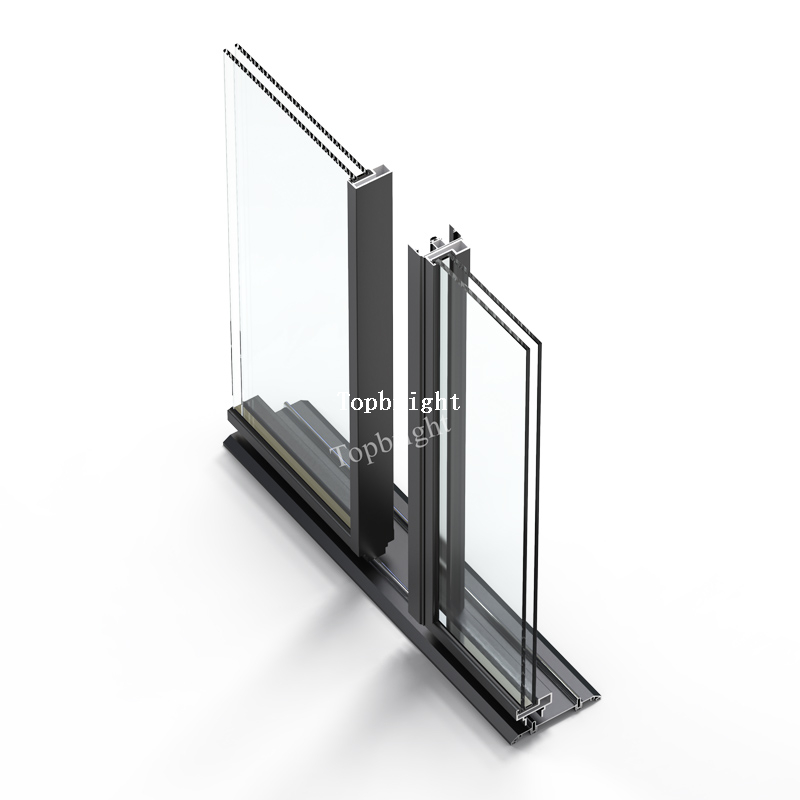

Thermal Break Glass Sliding Door TP16

TP16 double glass sliding door with all weather’s most innovative, energy-efficient, and versatile design. proven system technology combined with versatility in terms of materials, design and application options for residential and comercial. Offering the same brand promise of innovation, performance, value and quality, Topbright sliding doors are a perfect match to construction market.

  • TP16

  • Topbright

  • TP16-1

Availability:
Quantity:
Inquire

  • Single/tempered/insulated/laminated glass


  • Thermal Insulation, energy saving, sound proof


  • Aluminum alloy sliding door 1 Track


  • Range of vent types, concealed hinges in combination with door communication and access control for high degree of planning freedom


  • Thermal Broken System




TP16_Sliding_Door_double_Glass_1_Track-2TP16_Sliding_Door_double_Glass_1_Track-5TP16_Sliding_Door_double_Glass_1_Track-4TP16_Sliding_Door_Single_Glass_1_TrackTP16_Sliding_Door_single_Glass_1_Track-6TP16_Sliding_Door_double_Glass_1_TrackTP16_Sliding_Door_double_Glass_1_Track-3

Material
Aluminum frame+hardware+glass
Color
Matt black; white; ultra silver; clear anodized; nature clean aluminium ; Customized
Functions
Energy saving, heat & sound insulation, waterproof
Design and dimension
Based on Customer Drawing
Hardware
Chinese top brand; Germany brand

Profile
1.Aluminum alloy 6063-T5,can be thermal break
2.Frame thickness:1.2, 1.4, 1.6, 1.8, 2.0mm, normally 1.2mm for windows, 2.0mm for doors
3.Surface finish:Powder coating, Anodized, Electrophoresis, Fluorocarbon coating



Glass option
1.Single glass:4, 6, 8, 10, 12mm (Tempered Glass)
2.Double glass:5mm+9/12/27A+5mm (Tempered Glass)
3.Laminated glass:5+0.38/0.76/1.52PVB+5 (Tempered Glass)
4.Insulated glass with argon gas (Tempered Glass)
5.Triple glass (Tempered Glass)
6.Low-e glass (Tempered Glass)
7.Tinted/Reflected/Frosted Glass (Tempered Glass)
Flyscreen
Stainless steel security mesh, fiber flyscreen, retractable flyscreen
Blind
Type: 1.Fixed Blind 2.Electric control 3. Manual control 4.Magnetic control
Production standard
Basis on the shop drawings which approved by the buyer
Service
Professional technical team
