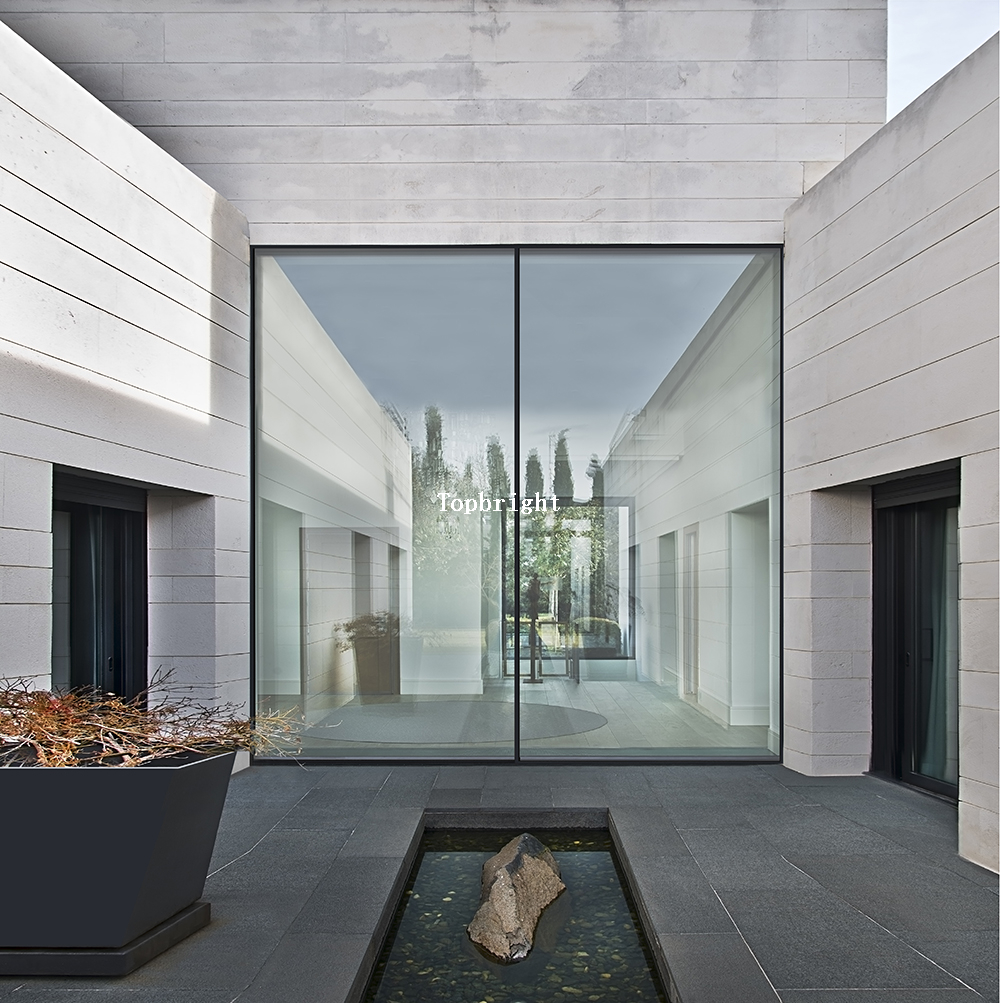

Slim Frame Exteriors Residential Sliding DoorTPS-002

Each door is custom-made to your size and requirements. Thermally Broken for excellent thermal and acoustic performance Industry leading color options. Anodized, Powder Coat, Wood Grain all available or combine two tone finishes are available. You expect your bifold doors to slide effortlessly from the day one. But you also want them to be equally effortless 10 years later. The stresses on a bifold door are considerable — and only doors engineered to such a high standard will last the distance. Topbright doors are tested to 20,000 cycles — the equivalent to opening twice a day, every day for 27 years!
  • TPS-002

  • Topbright

  • TPS-002

Availability:
Quantity:
  • Single/tempered/insulated/laminated glass


  • Thermal Insulation, energy saving, sound proof


  • Aluminum alloy sliding door 2 Track Single Glass


  • Range of vent types, concealed hinges in combination with door communication and access control for high degree of planning freedom


  • Thermal Broken System




Sliding_Door_Slim_Frame_Aluminum (10)Sliding_Door_Slim_Frame_Aluminum (3)Sliding_Door_Slim_Frame_Aluminum (2)Sliding_Door_Slim_Frame_Aluminum (6)Sliding_Door_Slim_Frame_Aluminum (8)Sliding_Door_Slim_Frame_Aluminum (9)Sliding_Door_Slim_Frame_Aluminum (4)Sliding_Door_Slim_Frame_Aluminum (5)

Material
Aluminum frame+hardware+glass
Color
Matt black; white; ultra silver; clear anodized; nature clean aluminium ; Customized
Functions
Energy saving, heat & sound insulation, waterproof
Design and dimension
Based on Customer Drawing
Hardware
Chinese top brand; Germany brand

Profile
1.Aluminum alloy 6063-T5,can be thermal break
2.Frame thickness:1.2, 1.4, 1.6, 1.8, 2.0mm, normally 1.2mm for windows, 2.0mm for doors
3.Surface finish:Powder coating, Anodized, Electrophoresis, Fluorocarbon coating




Glass option
1.Single glass:4, 6, 8, 10, 12mm (Tempered Glass)
2.Double glass:5mm+9/12/27A+5mm (Tempered Glass)
3.Laminated glass:5+0.38/0.76/1.52PVB+5 (Tempered Glass)
4.Insulated glass with argon gas (Tempered Glass)
5.Triple glass (Tempered Glass)
6.Low-e glass (Tempered Glass)
7.Tinted/Reflected/Frosted Glass (Tempered Glass)
Flyscreen
Stainless steel security mesh, fiber flyscreen, retractable flyscreen
Blind
Type: 1.Fixed Blind 2.Electric control 3. Manual control 4.Magnetic control
Production standard
Basis on the shop drawings which approved by the buyer
Service
Professional technical team
