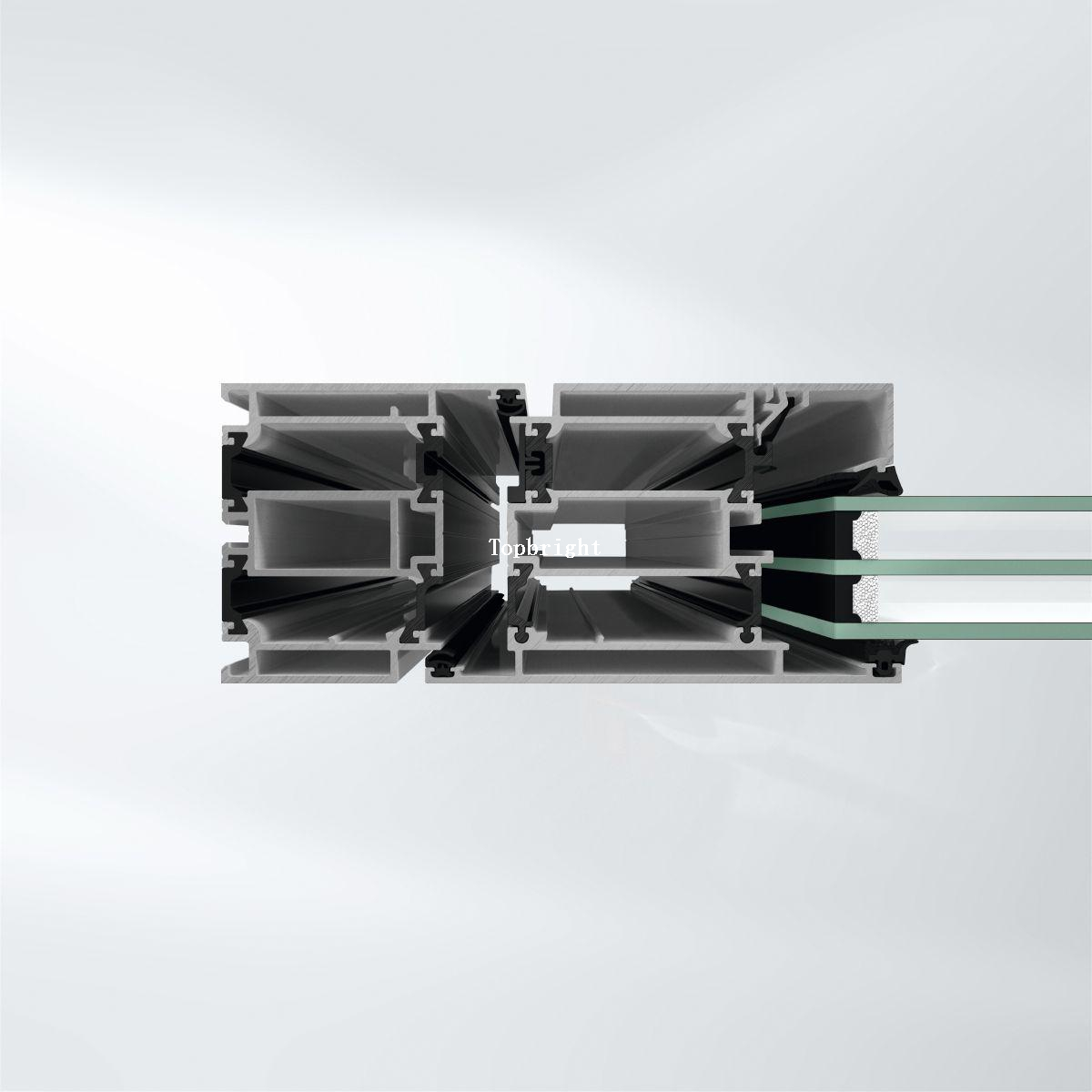

System basic depth: 75 mm
Uf value of frame (≥): 1.9 W/(m²·K)
Max. height: 3000 mm
Max. width: 1400 mm
Max. glass/panel thickness: 53 mm
Area of application: Residential projects, Commercial projects
Surface finishes: RAL, Anodised
Air permeability: Class 3
Watertightness: Class 5A
Wind load resistance: Class C2 / B2
Burglar resistance: Up to RC 2
Impact resistance: Class 1
Ud value of door (≥): 1.3 W/(m²·K)
Max. vent weight: 200 kg
Min.-max. height: 0...3000 mm
Min.-max. width: 0...1400 mm
Min. face width: 161 mm
Min.-max. glass/panel thickness: 13...53 mm
Barrier-free (≤) 20 mm: Yes
Zero-level threshold: Yes
Thick door leaf: 75 mm
Type of design:
Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left, For use in façade
Vent option:
All around, Sill rail profile, Adjustable sill, Flush-fitted, Inward opening, Outward-opening, Insert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Infill type:
Insert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door threshold:
Aluminium, Automatic door gasket, Flat door threshold
Special applications
Anti-finger-trap door, Sheet metal clad door, Opposed opening door, Swing door, Flush-fitted
Fitting material:
Aluminium, Stainless steel
Concealed fittings system: Yes
Neutral-colour fitting: Yes
Fittings installation:
Surface-mounted door hinge, Concealed door hinge, Barrel hinge
Electric strikes: Yes
With panic function: Yes
Finger-trap protection: Yes
Opening type:
Side-hung, Inward and outward, Single and double-vent
DIN direction: DIN LH / RH
Door swing:
Anti-finger-trap door, Sheet metal clad door, Opposed opening door, Swing door, Flush-fitted
Mechanical strength: Class 3
Proof of durability: Class 7, Class 8
Behaviour between different climates: Class 2(d),2(e)
Max. sound reduction index Rwp: 42 dB(A)
Top / bottom door closers: Yes
Door closer type: Top closers
Certificates: RAL quality mark, cradle2cradle SILVER
CE marking: Yes
