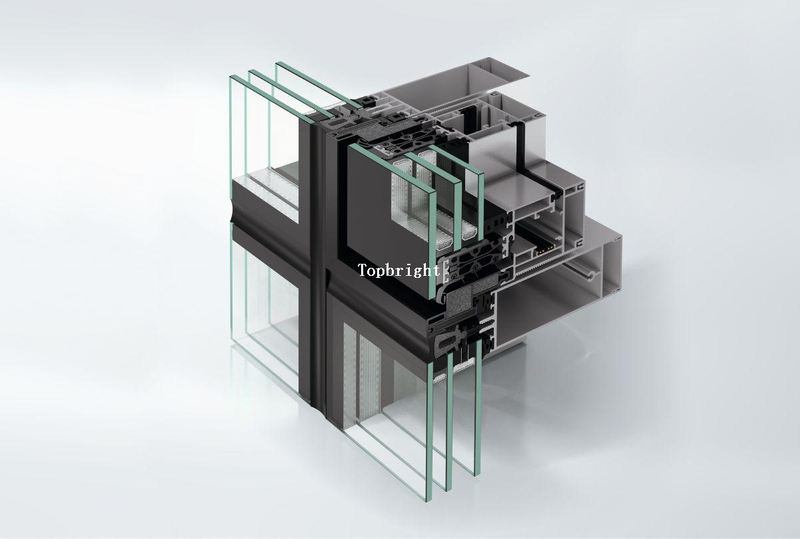

Schüco Window System AWS 114 SG.SI

Versatile all-glass façade window with the best thermal installation and simple installation The Schüco AWS 114 SG.SI (Structural Glazing Super Insulated) window system in an attractive all-glass look combines the best thermal insulation up to passive house level with high efficiency in production, installation and operation, and can be designed as a parallel-opening or projected top-hung window. With its large vent formats. the functional system can be integrated seamlessly into different façade geometries – even for high vent weights. As a highly thermally insulated all-glass façade window with stepped insulating glass, the insert unit offers a diverse range of design options for integration in nearly all Schüco façade systems.

  • AWS 114 SG.SI

  • Schüco

  • AWS 114 SG.SI

Availability:
Quantity:
Inquire

  • Seamless visual integration in virtually all Schüco Structural Glazing façade systems without compromising the uniform façade geometry


  • Opening types: projected top-hung and parallel-opening windows, even with high vent weights


  • Innovative range of fittings: perfectly balanced manual fittings system with low operating forces only; operation by means of concealed Schüco TipTronic motorised actuator also possible


  • Optimum thermal insulation to passive house standard


  • High transparency thanks to generous possible vent dimensions and weights for manual and Schüco TipTronic fittings


  • Optimised, balanced system with low operating forces


Schüco Window System AWS 114 SG.SI2Schüco Window System AWS 114 SG.SI

Uf value of frame (≥): 1.3 W/(m²·K)

Min.-max. system basic depth: 91...137 mm

Max. glass/panel thickness: 52 mm

Max. weight: 250 kg

Surface finishes: Powder, Anodised, Paint

Air permeability: Class 4

Max. sound reduction index Rwp: 47 dB(A)

Watertightness: E 1200

Impact resistance: Class 4

Burglar resistance: Up to RC 2

Suitable for safety barrier loading: Yes

Min. system basic depth: 91 mm

Max. system basic depth: 137 mm

Max. vent width: 2700 mm

Max. vent height: 3600 mm

Max. vent weight: 250 kg

Total width of unit: 2700 mm

Total height of unit: 3600 mm

Max. unit weight: 250 kg

Face width, inside: 58 mm

Min. glass/panel thickness: 28 mm

Min.-max. glass/panel thickness: 28...52 mm

Max. width: 2700 mm

Max. height: 3600 mm

Installation angle: 90 °

Drainage: Yes

Drainage levels: 1

Wind load resistance: C5/B5

Blast resistance: No

Certificates: cradle2cradle BRONZE

CE marking: Yes

Recyclable: Yes

Standards: DIN EN 1627, EN 14351, General building authority approval

AAMA certified: Yes

Building authority approval: Yes

European Technical Assessment: Yes
